Dia 20 - 160mm High Hardness Grinding Balls For Metal Mining Ball Mill
COMPANY PROFILE
Huafu Group is located in Zhangqiu district, Shandong Province, 45Km from the Jinan downtown, next to the 309road, enjoying firsthand Information and convenient traffic. Our company covers 80000 ,with over 100 employees, annual production capacity 150000 tons .and registered capital 70 million yuan. The group company consists of Jinan Huafu Forging Joint-stock Co.,Ltd,Shandong Huafu Steel Ball Co.,Ltd and Jinan Xing Tigers of Papermaking Machinery Co.,Ltd.We mainly produces forged steel balls, cast iron balls, steel cylpebs, grinding rods, mill liners, steel, hammer heads, automatic production lines for steel balls & grinding rods, decorative wrought iron products and paper-making machinery, Our products are mainly used in mines, cement plants, building materials, power stations, chemical industry and steel mills etc.
We develops overseas maikets great actively,in the exhibitions and other way, more and more foreign companies and experts have a cooperative relationship. Well exported to the United States, Chile, the UK, Brazil, South Africa, Australia, South Korea, India, Russia, Mexico,Malaysia, Laos, Vietnam,Indonesia, Ecuador, Colombia, Peru,Mongolia, Kazakhstan and more than 30 countries and regions.
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION

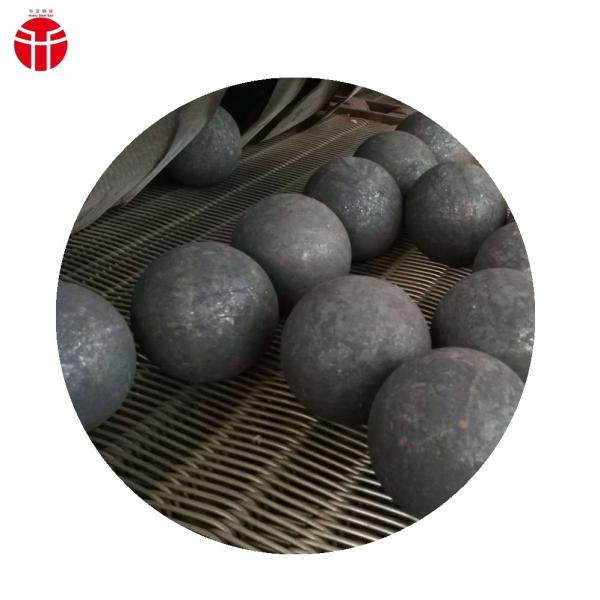

Forged steel ball is divided into carbon grinding steel ball, manganese grinding steel ball and special grinding steel ball. Forged steel ball is one of our advantage products. Diameter 20-70mm and 80-150mm steel ball are produced respectively by advanced automatic hot rolling and hot forging steel ball production line. Huafu grinding balls with uniform hardness in a high efficiency due to its advanced quenching technology. In advanced, these grinding balls feature high accurate dimensions, rounded geometry shape, high hardness and good mechanical properties, wear - resistance, no deformation, no breakage.
1.Chemical composition
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 60Mn | 0.57-0.44 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.40-1.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.00 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Mn2 | 0.65-0.75 | 0.20-0.45 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 |
| B1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.8 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B3 | 0.58-0.66 | 1.20-1.60 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.90-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.70-0.80 | 0.90-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| BV | 1-1.06 | 0.17-0.37 | 0.9-1.0 | 0.55-0.65 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.20 |
| 16Mn | 0.13-0.19 | 0.2-0.6 | 1.2-1.6 | 0-0.30 | 0-0.25 | --- | 0-0.03 | 0-0.03 |
2.Forged Steel Ball Details
| Diameter Tolerance(mm) | 20-25mm | 30-60mm | 70-90mm | 100-140mm | 150mm |
| ±1 | ±1.5 | +2,-2 | +2.5,-2 | +3,-2 |
| Roundness tolerance(%) | ≤1% | ≤1% | ≤1.5% | ≤2% | ≤2% |
| Theoretical Ball Weight | Diameter | Weight | Diameter | Weight |
| 20mm(0.80”) | 32.8g | 80mm(3.15”) | 2099.2g |
| 25mm(1.00”) | 64.0625g | 85mm(3.35”) | 2517.9g |
| 30mm(1.25”) | 110.7g | 90mm(3.55”) | 2988.9g |
| 35mm(1.35”) | 175.7g | 100mm(4.00”) | 4100g |
| 40mm(1.50”) | 262.4g | 110mm(4.35”) | 5457.1g |
| 50mm(2.00”) | 512.5g | 120mm(4.75”) | 7084.8g |
| 60mm(2.40”) | 885.6g | 125mm(5.00”) | 8007.8125g |
| 65mm(2.50”) | 1125.9g | 130mm(5.20”) | 9007.7g |
| | 70mm(2.75”) | 1406.3g | 140mm(5.50”) | 11250.4g |
| | 75mm(3.00”) | 1729.6g | 150mm(6.00”) | 13837.5g |
| Application | Cement plants, Mines, Power stations, Chemical industries, silica sand factory, other ball mills |
| | |
